Brake Pad Set:SFP100511--Fujian Huari Automotive Parts Co., Ltd.

Beschreibung
Ref.:	SFP100511
Huari No.:	HR1333

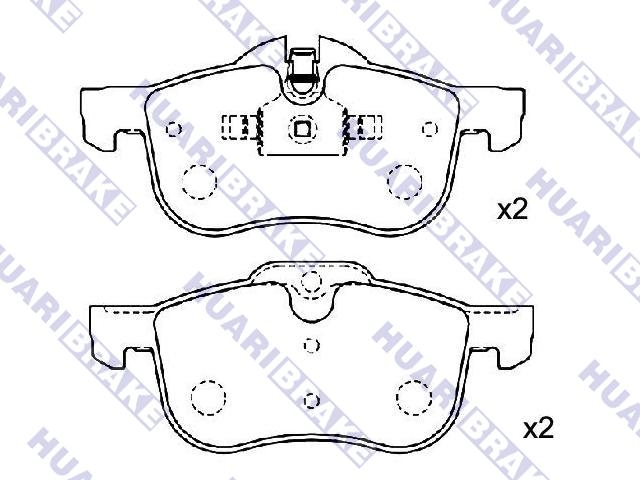

Name:	Brake Pad Set
Unit:	SET
Price:
Front Axle Brake System : ATE Width : 155 mm Height : 69.85 mm Thickness : 19 mm

Model	Engine			Type	CYL	year
MG MG 6 Hatchback					1/10 - /
MG 6 Hatchback 1.8 T	18 K4G	1795	160	Hatchback	4	1/10 - /
MG 6 Hatchback 1.8	18 K4C	1795	133	Hatchback	4	1/10 - /
MG MG 6 Saloon					1/10 - /
MG 6 Saloon 1.8	18 K4C	1795	133	Saloon	4	1/10 - /
MG 6 Saloon 1.8 T	18 K4G	1795	160	Saloon	4	1/10 - /
MG MG ZT- T					6/02 - 7/05
MG ZT- T 2.0 CDTi	204D2	1951	131	Estate	4	1/02 - 7/05
MG ZT- T 1.8 16V	18 K4F	1795	120	Estate	4	1/03 - 7/05
MG ZT- T 1.8 T 16V	18 K4G	1795	160	Estate	4	1/03 - 7/05
MG ZT- T 160	25 K4F	2497	160	Estate	6	0/01 - 7/05
MG ZT- T 180	25 K4F	2497	177	Estate	6	1/03 - 7/05
MG ZT- T 2.0 CDTi	204D2	1951	116	Estate	4	6/02 - 7/05
MG MG ZT					6/02 - 9/03
MG ZT 2.0 CDTi	204D2	1951	131	Saloon	4	1/02 - 7/05
MG ZT 1.8 16V	18 K4F	1795	120	Saloon	4	1/03 - 7/05
MG ZT 1.8 T 16V	18 K4G	1795	160	Saloon	4	1/03 - 7/05
MG ZT 160	25 K4F	2497	160	Saloon	6	6/01 - 7/05
MG ZT 180	25 K4F	2497	177	Saloon	6	1/03 - 7/05
MG ZT 2.0 CDTi	204D2	1951	116	Saloon	4	6/02 - 9/03
ROVER 75 (RJ)					0/01 - 5/05
75 (RJ) 1.8	K 1.8	1796	120	Saloon	4	2/99 - 5/05
75 (RJ) 1.8 Turbo	18 K4G	1796	150	Saloon	4	5/03 - 5/05
75 (RJ) 2.0 CDT	M 47 R	1950	115	Saloon	4	2/99 - 5/05
75 (RJ) 4.6 V8	46F2F	4601	260	Saloon	8	0/04 - 5/05
75 (RJ) 2.0 CDTi	204D2	1951	131	Saloon	4	2/03 - 5/05
75 (RJ) 2.0 V6	20 K4F	1997	150	Saloon	6	2/99 - 5/05
75 (RJ) 2.5 V6	KV 6	2497	175	Saloon	6	2/99 - 0/01
75 (RJ) 2.5 V6	25 K4F	2497	177	Saloon	6	0/01 - 5/05
ROVER 75 Tourer (RJ)					8/01 - 5/05
75 Tourer (RJ) 2.0 CDTi	204D2	1951	131	Estate	4	2/03 - 5/05
75 Tourer (RJ) 2.0 V6	20 K4F	1997	150	Estate	6	8/01 - 5/05
75 Tourer (RJ) 2.5 V6	KV 6	2497	177	Estate	6	8/01 - 5/05
75 Tourer (RJ) 4.6 V8	46F2F	4601	260	Estate	8	0/03 - 5/05
75 Tourer (RJ) 1.8	K 1.8	1796	120	Estate	4	8/01 - 5/05
75 Tourer (RJ) 1.8 Turbo	18 K4G	1796	150	Estate	4	5/03 - 5/05
75 Tourer (RJ) 2.0 CDT	M 47 R	1950	115	Estate	4	8/01 - 5/05
ROEWE (SAIC) 550 / e550					6/08 - 2/13
550 / e550 1.8 Turbo	18K4G	1796	160	Saloon	4	6/08 - 2/13
ROEWE (SAIC) 750					1/07 - 2/15
750 1.8 Turbo	18K4G	1796	160	Saloon	4	3/08 - 2/08
750 2.5	25K4F	2497	184	Saloon	6	1/07 - 2/15

Anwendung

LAND ROVER Land Rover 75 (Latin America) 1999-2006

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
