• Description
     04465-30330
     HR1681

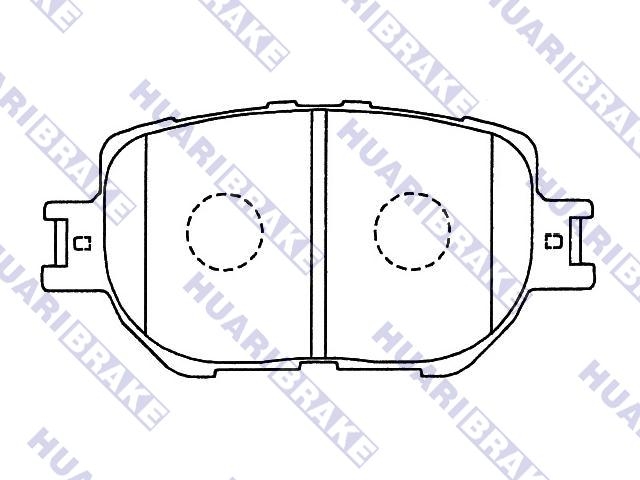

     Brake Pad
     SET

    Front Axle
    Brake System:
    AKB
    Width: 117.6 mm
    Height: 58.5 mm
    Thickness: 17 mm


Brake Pad:04465-30330

Application

TOYOTA CROWN 2500 GRS180 2003.12-2008.02
TOYOTA CROWN 2500 GSR181 2003.12-2008.02
TOYOTA CROWN 2500 GRS200 2008.2-
TOYOTA CROWN 3000 GRS182 2003.12-2008.02
TOYOTA CROWN 3000 GRS183 2003.12-2008.02
TOYOTA CROWN 3000 GRS202 2008.02-
TOYOTA MARK X 2500 GRX120 2004.11-
TOYOTA MARK X 2500 GRX125 2004.11-
TOYOTA MARK X 3000 GRX121 2004.11-
REF NO.
Factory Number Factory Number Factory Number
A.B.S. 37223 FTE BL1879A1 NISSHINBO PF1430
AKEBONO AN603K GIRLING 6133169 NK 224567
AKEBONO ACT817 HELLA PAGID 8DB355010201 NPS T360A07
APEC braking PAD1180 HELLA PAGID 355024201 OPTIMAL 12258
ATE 13046058172 HELLA PAGID 355010201 PAGID T1330
ATE 605817 HELLA PAGID 8DB355024201 QUINTON HAZELL BP1251
AUGROS 55670475 HERTH+BUSS JAKOPARTS J3602091 QUINTON HAZELL BP1349
AUGROS 55684849 ICER 181704 QUINTON HAZELL 7475
BENDIX 572517B INTIMA MD2180 QUINTON HAZELL 7310
BENDIX-AU DB1431 JAPANPARTS PA212AF REMSA 074200
BLUE PRINT ADT342112 JURID 572517J RHIAG 86846
BOSCH 0986424808 MAGNETI MARELLI T1330MM RHIAG 75033
BOSCH 0986424712 MAGNETI MARELLI 363700201330 ROADHOUSE 274200
BOSCH BP946 MGA 632 TEXTAR 2386401
BREMBO P83054 MINTEX MDB2291 TEXTAR TX0124
COMLINE ADB0896 MINTEX MDB82291 TRW GDB3316
COMLINE CBP0896 MINTEX MDB2013 VALEO 598827
DELPHI LP1804 NIPPARTS J3602091 WAGNER WBP23526A
FERODO FDB1528 NISSHINBO PF1550
OE Number
Make Number Make Number Make Number
TOYOTA 0446520570 TOYOTA 044652B040 TOYOTA 0446520500
TOYOTA 0446520540 TOYOTA 0446530330 TOYOTA 0446513030
TOYOTA 044652B030 TOYOTA 04465YZZDF TOYOTA 044652B010


  • Recommends every 5,000 km check Brake System
    ensure the normal operation of the braking system
  • Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
  • Rear brakes is recommended to replace within 5-7 km
  • Replace the Disc brake when follow situation happen:
  • 1.Sensor alarm;
  • 2.Friction materials thickness less than 3mm;
  • 3.Friction materials becomes contaminated with brake fluid;
  • 4.Uneven wear within a set;
  • Replace the brake rote when follow situation happen:
  • 1.Vibrate when braking;
  • 2.Car vehicle performance more than 60000Km and braking unstable;
  • 3.Disc brake thickness wear more than 2mm;
