• Description
     04466-17010

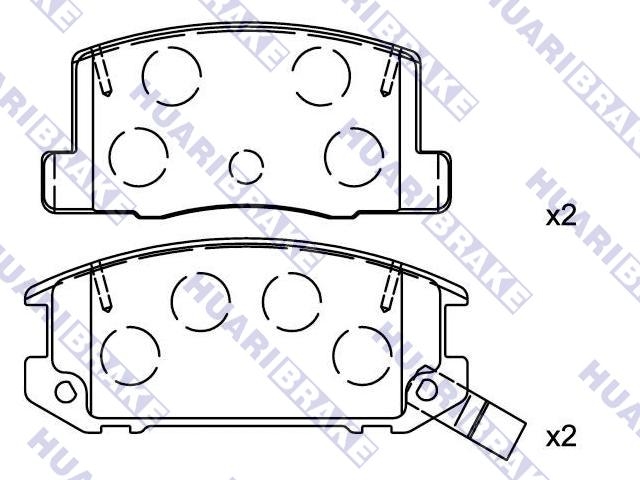

     Brake Pad Set
     SET

    Rear Axle
    Brake System : AKB
    Width : 99 mm
    Width 1 : 106.7 mm
    Height : 47.2 mm
    Height 1 : 46.8 mm
    Thickness : 16 mm
    Thickness 1 : 15 mm

Brake Pad Set:04466-17010
Model Engine Chassis Type CYL year
TOYOTA MR 2 I (AW1_)  1/84 - 6/90
TOYOTA MR 2 II (SW2_)  2/89 - 1/99
TOYOTA MR 2 III (ZZW3_)  0/99 - 6/07

Application

TOYOTA MR2 1985-1989
TOYOTA MR2 2.0L 1991-1993
TOYOTA MR2 2.2L 1991-1995
TOYOTA MR2 Spyder 2000-2005


  • Recommends every 5,000 km check Brake System
    ensure the normal operation of the braking system
  • Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
  • Rear brakes is recommended to replace within 5-7 km
  • Replace the Disc brake when follow situation happen:
  • 1.Sensor alarm;
  • 2.Friction materials thickness less than 3mm;
  • 3.Friction materials becomes contaminated with brake fluid;
  • 4.Uneven wear within a set;
  • Replace the brake rote when follow situation happen:
  • 1.Vibrate when braking;
  • 2.Car vehicle performance more than 60000Km and braking unstable;
  • 3.Disc brake thickness wear more than 2mm;
