Description
Ref.:	0060743563
Name:	Brake Pad Set
Unit:	SET
Price:

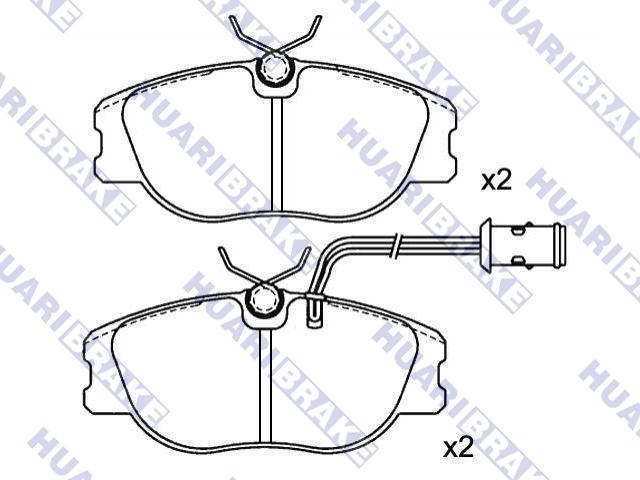

Front Axle Brake System : TRW Width : 129.9 mm Height : 58.9 mm Thickness : 19 mm

Model	Engine			Type	CYL	year
ALFA ROMEO 164 (164_)					9/90 - 9/92
164 (164_) 2.0 Turbo	AR 06476	1995	174	Saloon	4	0/87 - 9/98
164 (164_) 2.0 V6 Turbo (164.A2G, 164.A2F)	AR 64101	1996	204	Saloon	6	3/91 - 9/92
164 (164_) 3.0 V6 (164.A)	AR 06410	2959	192	Saloon	6	6/87 - 9/92
164 (164_) 3.0 V6 (164.AD, 164.AH, 164.AB)	AR 06412	2959	184	Saloon	6	6/87 - 9/92
164 (164_) 3.0 V6 (164.H1A, 164.H1B, 164.K1P)	AR 64305	2959	180	Saloon	6	9/92 - 9/98
164 (164_) 2.0 V6 Turbo (164.K3)	AR 64102	1996	201	Saloon	6	9/92 - 9/98
164 (164_) 2.5 TD (164.A1A)	VM 84 A	2499	114	Saloon	4	6/87 - 9/92
164 (164_) 2.5 TD (164.K2A, 164.K2B)	VM 08 B	2499	125	Saloon	4	9/92 - 9/98
164 (164_) 2.5 V6	AR 66201	2492	163	Saloon	6	9/92 - 9/98
164 (164_) 3.0 24V (164.K1)	AR 66301	2959	211	Saloon	6	9/92 - 9/98
164 (164_) 3.0 24V Q4 (164.K1M, 164.K1C)	AR 64308	2959	231	Saloon	6	2/94 - 9/98
164 (164_) 3.0 24V QV (164.H1)	AR 64304	2959	233	Saloon	6	9/92 - 9/98
164 (164_) 3.0 i.e. QV (164.AG)	AR 06430	2959	200	Saloon	6	9/90 - 9/92
FIAT CROMA (154)					6/87 - 8/96
CROMA (154) 2000 16V	154 E1.000	1995	137	Hatchback	4	8/92 - 8/96
CROMA (154) 2000 i.e. Turbo (154.AM, 154.LM)	154 C4.046	1995	150	Hatchback	4	6/87 - 8/96
FIAT TIPO (160_)					3/93 - 4/95
TIPO (160_) 2.0 16V (160.AV)	160 A8.046	1995	146	Hatchback	4	7/91 - 4/95
TIPO (160_) 2.0 i.e. 16V Sport (160.EF)	836 A3.000	1995	139	Hatchback	4	3/93 - 4/95
LANCIA DEDRA (835)					7/94 - 7/99
DEDRA (835) 2.0 16V (835ED)	836 A3.000	1995	139	Saloon	4	7/94 - 7/99
LANCIA DEDRA SW (835)					7/94 - 7/99
DEDRA SW (835) 2.0 16V (835ED)	836 A3.000	1995	139	Estate	4	7/94 - 7/99
LANCIA DELTA I (831_)					2/86 - 2/92
DELTA I (831_) 2.0 16V HF Integrale (831AB.026)	831 D5.000	1995	196	Hatchback	4	3/89 - 9/91
DELTA I (831_) 2.0 HF Integrale (831AB.019)	831 B5.000	1995	166	Hatchback	4	1/86 - 8/88
DELTA I (831_) 2.0 HF Integrale (831AB.024)	831 C5.000	1995	181	Hatchback	4	0/87 - 2/91
DELTA I (831_) 2.0 HF Integrale (831AB.024S, 831AB.028)	831 C5.046	1995	177	Hatchback	4	2/86 - 2/92
LANCIA DELTA II (836)					6/93 - 8/99
DELTA II (836) 2.0 16V (836AA, 836CA)	836 A3.000	1995	139	Hatchback	4	6/93 - 8/99
LANCIA THEMA (834)					0/87 - 5/92
THEMA (834) 2000 16V Turbo (834AC)	834 C1.000	1995	181	Saloon	4	2/88 - 6/90
THEMA (834) 2000 16V Turbo (834GC, 834FC)	834 F2.000	1995	201	Saloon	4	0/92 - 7/94
THEMA (834) 2000 i.e. 16V Turbo (834AL)	834 C1.246	1995	177	Saloon	4	4/89 - 5/92
THEMA (834) 8.32 (834F)	F 105 L	2927	215	Saloon	8	9/87 - 5/89
THEMA (834) 8.32 (834FS)	F 105 L.046	2927	205	Saloon	8	0/87 - 5/92
LANCIA THEMA SW (834)					4/89 - 3/93
THEMA SW (834) 2000 i.e. 16V Turbo (834AC)	834 C1.000	1995	181	Estate	4	2/88 - 6/90
THEMA SW (834) 2000 i.e. 16V Turbo (834AL)	834 C1.246	1995	177	Estate	4	4/89 - 3/93

Application

ALFA ROMEO 164 1990-1995

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
