• Description
     45022-S1A-E20
     HR1490

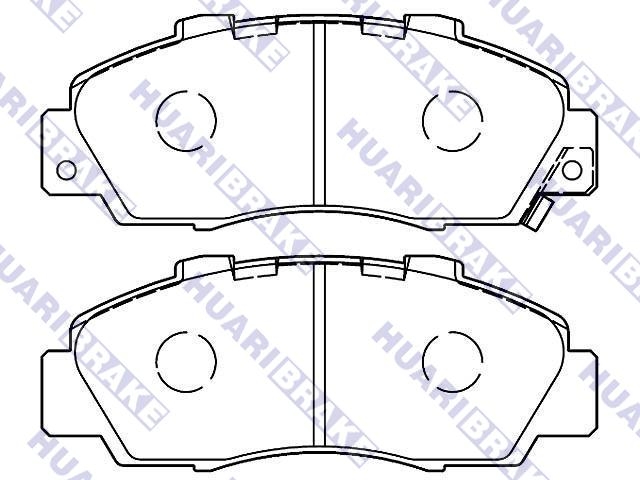

     Brake Pad Set
     SET

    Front Axle
    Brake System : AKB
    Width : 148.6 mm
    Height : 57.7 mm
    Thickness : 17.5 mm

Brake Pad Set:45022-S1A-E20
Model Engine Chassis Type CYL year
ACURA INTEGRA Saloon  0/93 - 9/01
ACURA LEGEND Coupe  1/87 - 8/91
ACURA LEGEND II Coupe  8/91 - 8/96
ACURA LEGEND II  8/91 - 8/96
ACURA LEGEND  1/88 - 8/91
ACURA NSX Targa (NA1)  1/95 - 2/96
ACURA NSX  1/92 - 8/97
HONDA ACCORD IV Aerodeck (CB)  1/91 - 2/93
HONDA ACCORD V (CC7)  3/93 - 1/96
HONDA ACCORD V Aerodeck (CE)  9/93 - 2/98
HONDA ACCORD V Coupe (CD)  9/93 - 2/98
HONDA ACCORD VI (CE, CF)  2/96 - 0/98
HONDA ACCORD VII (CG)  3/97 - 2/03
HONDA ACCORD VII Coupe (CG)  0/01 - 6/03
HONDA CIVIC IV Fastback (MA,MB)  1/98 - 0/00
HONDA CIVIC V Aerodeck (MC)  4/98 - 2/01
HONDA CIVIC V Hatchback (EJ9, EK1/3/4)  1/98 - 0/00
HONDA CR-V I (RD)  4/99 - 2/02
HONDA HR-V (GH)  0/99 - /
HONDA INSPIRE (UA1, UA3)  6/95 - 8/98
HONDA INTEGRA (DC2)  9/93 - 8/01
HONDA INTEGRA Coupe (DC5)  2/02 - /
HONDA LEGEND II (KA)  1/91 - 2/96
HONDA LEGEND II Coupe (KA)  1/91 - 2/96
HONDA LEGEND III (KA9)  1/97 - 9/04
HONDA LEGEND IV (KB_)  0/04 - 2/12
HONDA NSX I Convertible (NA)  1/97 - 9/05
HONDA NSX I Coupe (NA)  1/97 - 9/05
HONDA ODYSSEY  7/02 - 9/03
HONDA PRELUDE IV (BB)  2/92 - 9/96
HONDA PRELUDE V (BB)  3/97 - 0/98
HONDA SHUTTLE (RA)  0/97 - 6/04
HONDA SMX  0/99 - 9/02
HONDA STEPWGN (LA-RF_, UA-RF_)  0/00 - 9/05
HONDA (GUANGZHOU) ACCORD VI  6/00 - 2/02
ROVER 600 (RH)  8/93 - 2/99

Application

ACURA CL 6 Cylinder 1997-1999
ACURA Integra Type R 1998
ACURA Integra Type R 2000-2001
ACURA Legend 1991-1995
ACURA NSX 1991-2005
ACURA RL 1996-1998
ACURA TL 1995-1998
ACURA Vigor 1992-1994
HONDA Accord Coupe 2000-2002
HONDA Accord Sedan 1995-2002
HONDA Accord Station Wagon 1991-1997
HONDA CR-V 1997-2001
HONDA Odyssey 1995-1998
HONDA Prelude 1997-2001
HONDA Prelude Vtec 1993-1996
ISUZU Oasis 1996-1999


  • Recommends every 5,000 km check Brake System
    ensure the normal operation of the braking system
  • Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
  • Rear brakes is recommended to replace within 5-7 km
  • Replace the Disc brake when follow situation happen:
  • 1.Sensor alarm;
  • 2.Friction materials thickness less than 3mm;
  • 3.Friction materials becomes contaminated with brake fluid;
  • 4.Uneven wear within a set;
  • Replace the brake rote when follow situation happen:
  • 1.Vibrate when braking;
  • 2.Car vehicle performance more than 60000Km and braking unstable;
  • 3.Disc brake thickness wear more than 2mm;
