• Description
     443 698 151 C
     HR1096- 2

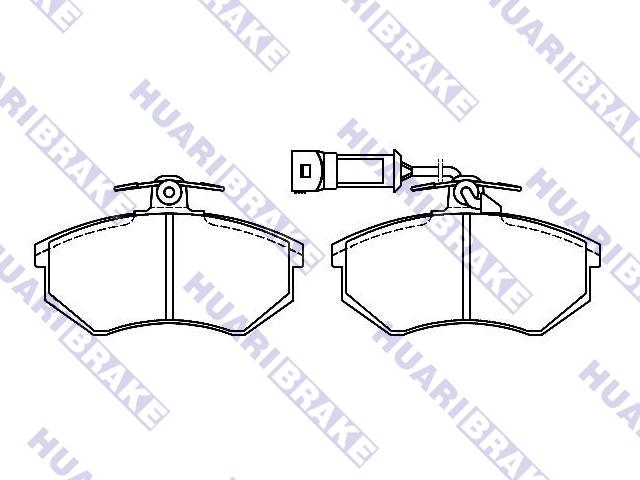

     Brake Pad Set
     SET

    Front Axle
    Brake System : TRW
    Width : 119 mm
    Height : 69.5 mm
    Thickness : 19.3 mm

Brake Pad Set:443 698 151 C
Model Engine Chassis Type CYL year
AUDI 100 (43, C2)  3/77 - 7/82
AUDI 100 (44, 44Q, C3)  8/89 - 7/91
AUDI 100 Avant (43, C2)  7/77 - 2/83
AUDI 100 Avant (44, 44Q, C3)  8/82 - 7/84
AUDI 200 (44, 44Q)  8/85 - 9/91
AUDI 200 Avant (44, 44Q)  8/85 - 9/91
AUDI 80 (89, 89Q, 8A, B3)  0/90 - 8/91
AUDI 90 (89, 89Q, 8A, B3)  4/87 - 9/91
AUDI QUATTRO (85)  5/84 - 7/87
AUDI (FAW) 100 (443, 4A2)  1/93 - 6/95
HONGQI CA SERIES Saloon  4/82 - 7/88
JAC BIN YUE  1/07 - /
CHERY A5  1/06 - 2/12
CHERY COWIN 3  5/10 - 2/12
CHERY EASTAR A6  2/06 - 2/14
CHERY EASTAR CROSS  6/07 - 2/08
CHERY EASTAR  2/06 - 2/10
CHERY V5 MPV  6/06 - 6/07
ZHONGHUA(BRILLIANCE) SY  8/02 - 2/06
ZHONGHUA(BRILLIANCE) ZUNCHI (M1)  7/09 - 2/12

Application

AUDI 100 1989-1991
AUDI 100 Quattro 1989-1991
AUDI 4000 Quattro 1983-1984
AUDI 5000 CS 1986-1988
AUDI 5000 Quattro 1986
AUDI 5000 S 1985-1988
AUDI 5000 S Turbo 1984-1985
AUDI 80 1990-1992
AUDI 80 Quattro 1992
AUDI 90 1990-1991
AUDI Quattro 1985


  • Recommends every 5,000 km check Brake System
    ensure the normal operation of the braking system
  • Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
  • Rear brakes is recommended to replace within 5-7 km
  • Replace the Disc brake when follow situation happen:
  • 1.Sensor alarm;
  • 2.Friction materials thickness less than 3mm;
  • 3.Friction materials becomes contaminated with brake fluid;
  • 4.Uneven wear within a set;
  • Replace the brake rote when follow situation happen:
  • 1.Vibrate when braking;
  • 2.Car vehicle performance more than 60000Km and braking unstable;
  • 3.Disc brake thickness wear more than 2mm;
