• Description
     5Q0 698 451 C
     HR1823

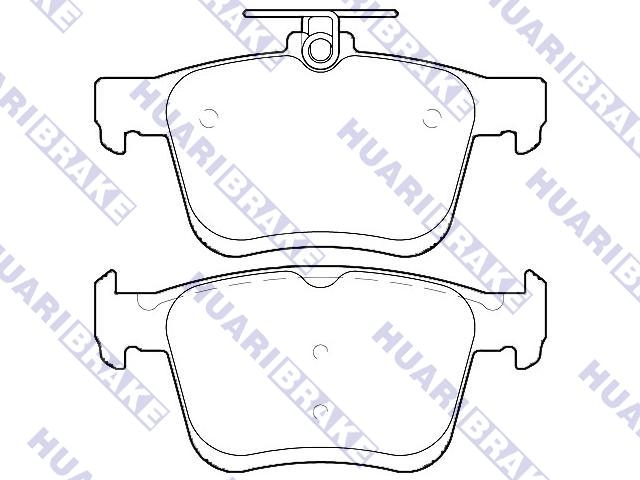

     Brake Pad Set
     PCS

    Rear Axle
    Brake System : ATE
    Width : 123 mm
    Height : 61.5 mm
    Height 1 : 56.1 mm
    Thickness : 15.2 mm

Brake Pad Set:5Q0 698 451 C
Model Engine Chassis Type CYL year
AUDI A3 (8V1, 8VK)  3/13 - /
AUDI A3 Convertible (8V7)  2/14 - /
AUDI A3 Limousine (8VS, 8VM)  5/13 - /
AUDI A3 Sportback (8VA, 8VF)  5/13 - /
AUDI Q2 (GAB)  7/18 - /
AUDI TT (FV3, FVP)  1/17 - /
AUDI TT Roadster (FV9, FVR)  1/17 - /
ROEWE (SAIC) i6 / ei6  2/17 - /
SEAT ATECA (KH7)  7/18 - /
SEAT LEON (5F1)  5/13 - /
SEAT LEON Box Body / Hatchback (5F1)  2/13 - /
SEAT LEON SC (5F5)  3/13 - /
SEAT LEON ST (5F8)  8/13 - /
SEAT LEON ST Box Body / Estate (5F8)  0/14 - /
SKODA KAROQ (NU7)  7/17 - /
VOLKSWAGEN GOLF ALLTRACK (BA5, BV5)  2/14 - /
VOLKSWAGEN GOLF SPORTSVAN  5/17 - /
VOLKSWAGEN GOLF VAN VII Variant (BA5)  5/13 - 3/17
VOLKSWAGEN GOLF VII (5G1)  1/13 - /
VOLKSWAGEN GOLF VII Van (5G1)  5/13 - /
VOLKSWAGEN GOLF VII Variant (BA5)  4/13 - /
VOLKSWAGEN POLO (6R, 6C)  4/16 - /
VOLKSWAGEN T-ROC (A11)  3/18 - /
VOLKSWAGEN TOURAN (5T1)  1/18 - /

Application

AUDI A3 Cabriolet 2015


  • Recommends every 5,000 km check Brake System
    ensure the normal operation of the braking system
  • Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
  • Rear brakes is recommended to replace within 5-7 km
  • Replace the Disc brake when follow situation happen:
  • 1.Sensor alarm;
  • 2.Friction materials thickness less than 3mm;
  • 3.Friction materials becomes contaminated with brake fluid;
  • 4.Uneven wear within a set;
  • Replace the brake rote when follow situation happen:
  • 1.Vibrate when braking;
  • 2.Car vehicle performance more than 60000Km and braking unstable;
  • 3.Disc brake thickness wear more than 2mm;
