Brake Shoe Set:04495-16080--Fujian Huari Automotive Parts Co., Ltd.

Описание
Ref.:	04495-16080
Huari No.:	HRK2321

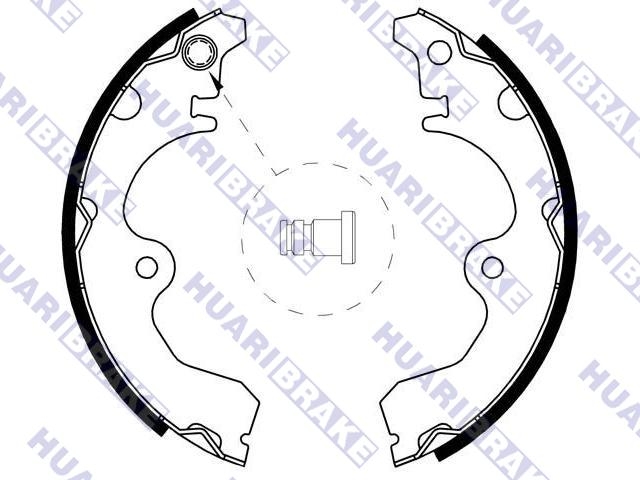

Name:	Brake Shoe Set
Unit:	SET
Price:
Rear Axle Brake System : SUMITOMO Diameter : 180 mm Width : 28 mm

Model	Engine			Type	CYL	year
TOYOTA PASEO Convertible (EL54)					0/96 - 1/98
PASEO Convertible (EL54) 1.5 (EL54_)	5E-FE	1497	90	Convertible	4	0/96 - 1/98
TOYOTA PASEO Coupe (EL54_)					8/95 - 6/99
PASEO Coupe (EL54_) 1.5 (EL54_)	5E-FE	1497	90	Coupe	4	8/95 - 6/99
TOYOTA STARLET (_P8_)					2/89 - 3/96
STARLET (_P8_) 1.0 (EP80_)	1N	999	54	Hatchback	4	2/89 - 2/92
STARLET (_P8_) 1.3 12V (EP81_)	1N	1296	75	Hatchback	4	2/89 - 2/92
STARLET (_P8_) 1.3 12V Cat (EP81)	2E-E	1296	75	Hatchback	4	2/89 - 3/96
STARLET (_P8_) 1.5 D (NP80_)	1N	1453	54	Hatchback	4	2/89 - 3/96
TOYOTA STARLET (_P9_)					1/96 - 0/99
STARLET (_P9_) 1.3 (EP91_)	4E-FE	1332	75	Hatchback	4	1/96 - 0/99

По маркам автомобилей

TOYOTA SERA EXY10 1500 R 90' 3-95' 5
TOYOTA CYNOS EL44 1500 R 91' 1-99' 5
TOYOTA CYNOS EL52 1300 95' 9-99' 7
TOYOTA CYNOS EL54 1500 95' 9-99' 7
TOYOTA STARLET NP80 1500 ABS 89' 12-96' 1
TOYOTA STARLET NP90 1500 ABS 96' 1-99' 7
TOYOTA STARLET NP80 1500 ABS 92' 1-96' 1
TOYOTA STARLET EP91 1300 V ABS 96' 1-99' 7
TOYOTA STARLET EP91 1300 V ABS 96' 1-99' 7
TOYOTA STARLET EP82 1300 R / ABS 89' 12-96' 1
TOYOTA STARLET EP82 1300 R / ABS 89' 12-96' 1
TOYOTA STARLET NP90 1500 ABS 96' 1-99' 7
TOYOTA TERCEL / CORSA NL50 1500 94' 9-99' 7
TOYOTA TERCEL / CORSA EL51 1300 94' 9-99' 7
TOYOTA TERCEL / CORSA NL40 1500 90' 9-94' 9
TOYOTA TERCEL / CORSA EL41 1300 90' 9-94' 9
TOYOTA TERCEL / CORSA EL43 1500 5 E-FE 90' 9-94' 9
TOYOTA TERCEL / CORSA EL43 1500 5 E-FHE 90' 9-94' 9
TOYOTA TERCEL / CORSA EL53 1500 94' 9-99' 7
TOYOTA COROLLA II EL51 1300 94' 9-99' 7
TOYOTA COROLLA II EL41 1300 90' 9-94' 9
TOYOTA COROLLA II EL51 1300 94' 9-99' 7
TOYOTA COROLLA II EL43 1500 SR 90' 9-94' 9
TOYOTA COROLLA II EL43 1500 ZS 90' 9-94' 9
TOYOTA COROLLA II EL53 1500 94' 9-99' 7
TOYOTA COROLLA II NL40 1500 90' 9-94' 9
TOYOTA COROLLA II NL50 1500 94' 9-99' 7
TOYOTA COROLLA II EL41 1300 90' 9-94' 9

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
