Brake Pad Set:UMY4-33-28Z--Fujian Huari Automotive Parts Co., Ltd.

1 2 3

Описание
Ref.:	UMY4-33-28Z
Huari No.:	HR1630
Name:	Brake Pad Set
Unit:	SET
Price:

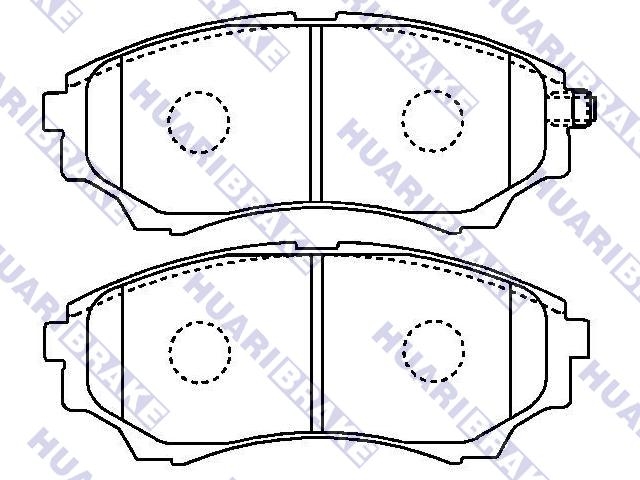

Front Axle Brake System : SUM Width : 145 mm Height : 58.4 mm Thickness : 16 mm

Brake Pad Set:UMY4-33-28Z

Model	Engine	Chassis			Type	CYL	year
FORD RANGER						5/05 - 6/06
RANGER (ER, EQ, R_) 2.5 D 4x4	WL		2499	78	Pickup	4	0/99 - 4/02
RANGER (ER, EQ, R_) 2.5 TD 4x4	WL-T		2500	109	Pickup	4	0/99 - 6/06
RANGER (ER, EQ, R_) 2.5 TD 4x4	WL-T		2500	84	Pickup	4	4/02 - 6/06
RANGER (ER, EQ, R_) 3.0 TDCi 4x4			2953	156	Pickup	4	5/05 - 6/06
FORD RANGER						5/06 - 7/12
RANGER (ET) 3.0 TDCi	WEAT		2953	156	Pickup	4	5/06 - 7/12
RANGER (ET) 3.0 TDCi 4x4	WEAT		2953	156	Pickup	4	5/06 - 7/12
RANGER (ET) 2.5 TDCi 4x4	WLAA		2499	143	Pickup	4	5/06 - 7/12
MAZDA B-SERIE (UN)						6/99 - 7/06
B-SERIE (UN) 2.5 D 4WD	WLE7		2500	84	Pickup	4	2/02 - 1/06
B-SERIE (UN) 2.5 TD 4WD	MD25TI		2499	109	Pickup	4	6/99 - 7/06
MAZDA BT-50 (CD)						2/06 - 2/15
BT-50 Pickup (CD, UN) 2.5 MRZ-CD 4x4	WLAA		2499	143	Pickup	4	2/06 - 2/15

По маркам автомобилей

MAZDA B2500 (Latin America) 2004-2006

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
